Moon Series Ceiling Light
Durable design with adjustable lighting control
Article number: LUM-2301
Moon Series Ceiling Light is a versatile ceiling-mounted luminaire designed for both indoor and outdoor use.
It features selectable luminous flux and color temperature via DIP switch, making it flexible for different lighting environments.
The robust IK10 construction and IP54 rating ensure durability and protection in demanding environments.
Moon Series Ceiling Light
Specifications
Technicals
Features
Documents
Gallery
| Specification | Details |
|---|---|
| Series | MOON |
| Model Numbers | LUM-2301 / LUM-2302 |
| Description | Moon 3000/4000K (Sensor version available) |
| Wattage | 10W / 14W / 20W |
| Luminous Flux | 1060 / 1460 / 2050 lm* |
| CCT | 3000K / 4000K (Selectable) |
| IP Rating | IP54 |
| Protection Class | Class II |
| Impact Rating | IK10 |
| Diameter | 320 mm |
| Height | 100 mm |
| Sensor Option | With / Without Microwave Sensor |
| Installation | Ceiling mounted |
- Adjustable luminous flux (3 current settings: 10W / 14W / 20W)
- Selectable CCT: 3000K or 4000K via DIP switch
- Available with or without microwave sensor
- Robust IK10 impact resistance
- Enclosure protection up to IP54

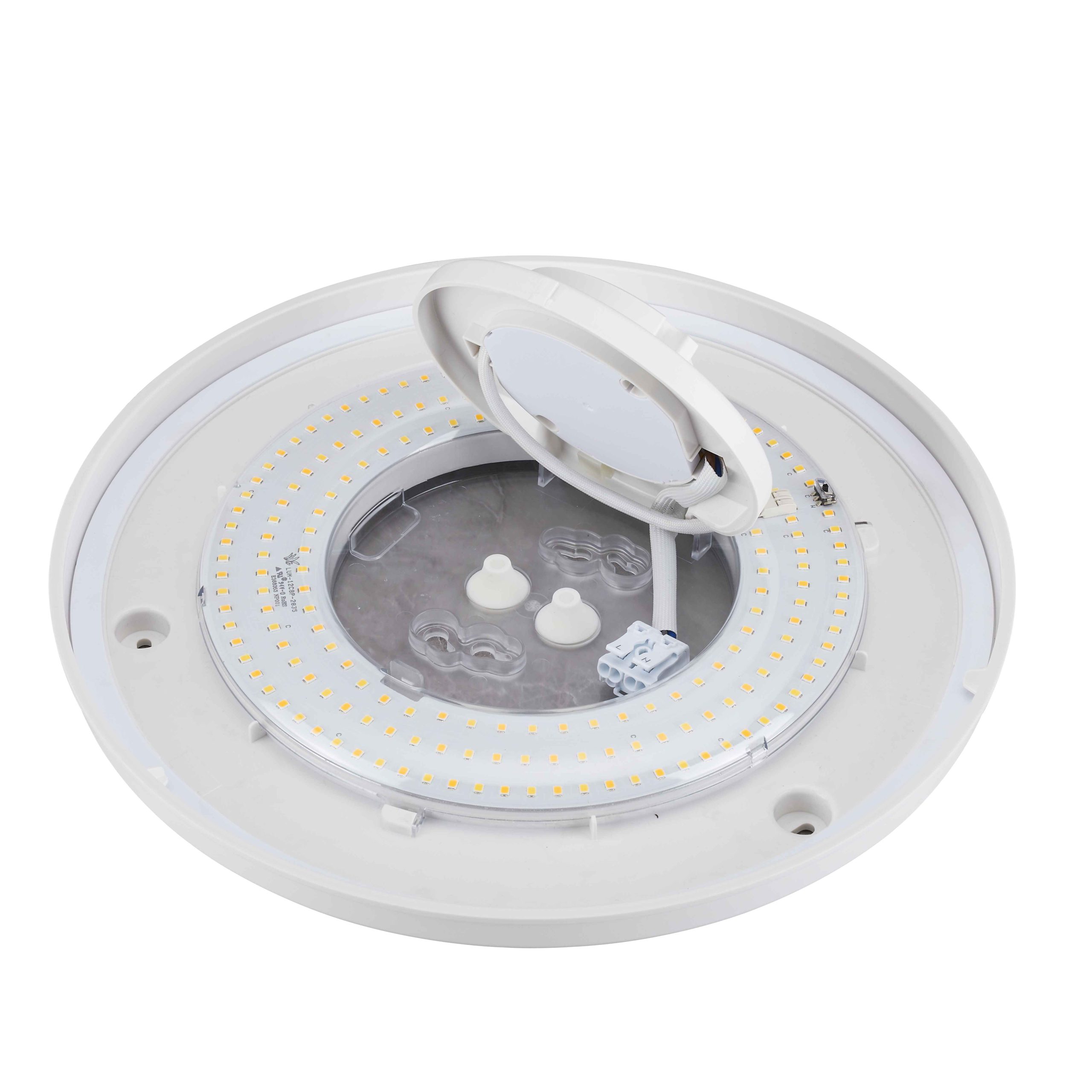

- Tool-less interchangeable LED and driver
- Suitable for indoor & outdoor applications
- Ceiling box screw hole fixing system
