BINGO Wi-Fi / BLE 1-Channel Smart Dimmer

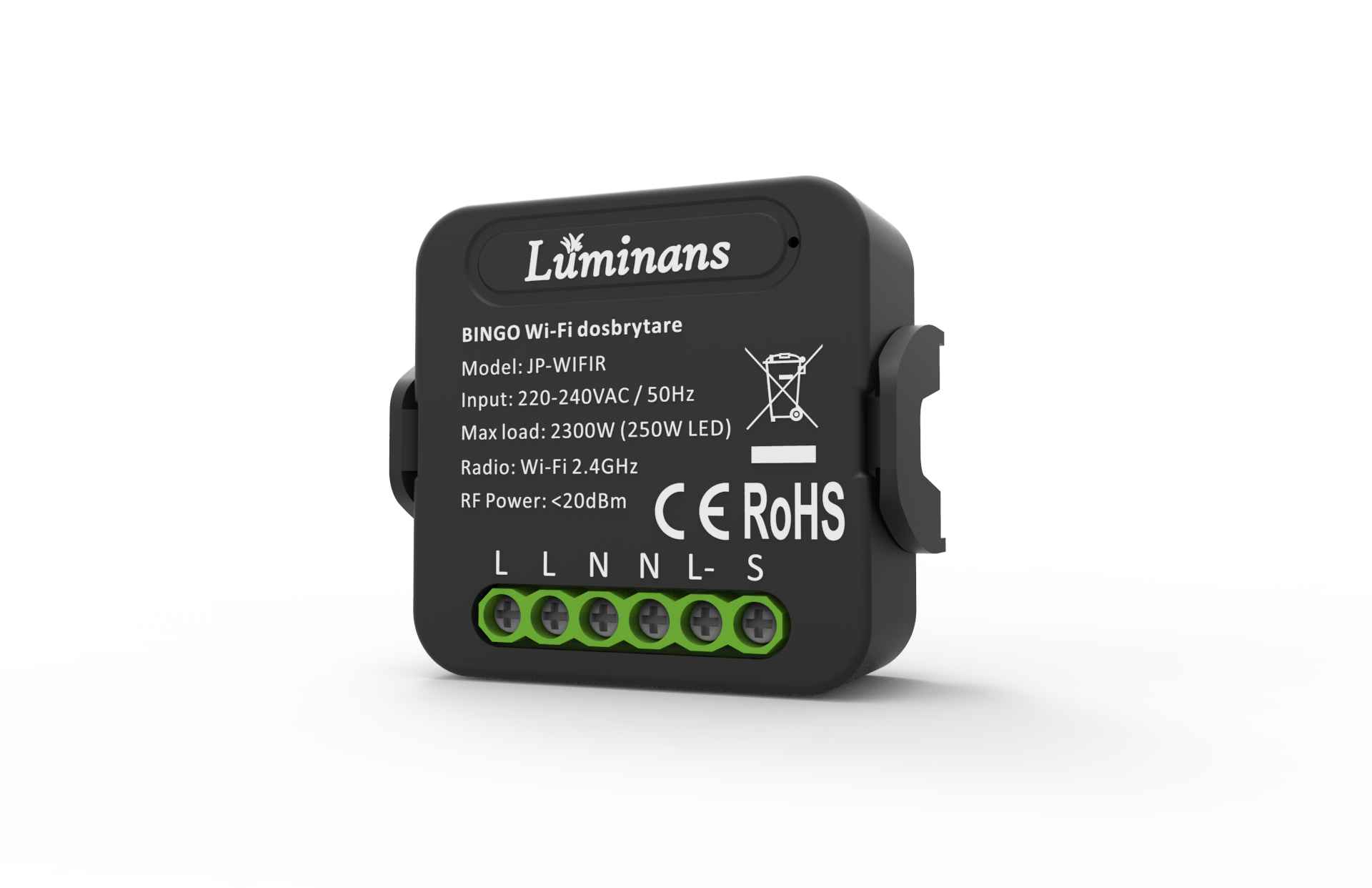

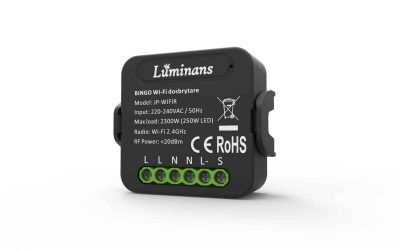

LUMINANS BINGO Wi-Fi / BLE 1-Channel Smart Dimmer is a compact in-wall dimmer designed for smooth and stable dimming of LED (trailing-edge), incandescent, and halogen lamps. It can be controlled using a spring-return push button or remotely via the Tuya Smart app on your smartphone or tablet.
Once paired, the dimmer allows full remote control even when you are not connected to the same Wi-Fi network. It also supports Amazon Alexa and Google Assistant, enabling convenient voice-controlled lighting. With no gateway required, BINGO offers smart home automation and lighting control wherever you are.
BINGO Wi-Fi / BLE 1-Channel Smart Dimmer
Specifications
Technicals
Features
Documents
Gallery
| Name | LUMINANS BINGO Wi-Fi / BLE 1-Channel Smart Dimmer |
|---|---|
| Product Type | In-wall Dimmer |
| Channels | 1-Channel |
| Control Type | Push Button / App Control |
| Connectivity | Wi-Fi + Bluetooth (BLE) |
| App | Tuya Smart |
| Voice Control | Amazon Alexa, Google Assistant |
| Supply Voltage | 220–240 VAC / 50Hz |
| Load Range | 1–150W |
| Load Type | Trailing Edge (Bakkant) |
| Wi-Fi Frequency | 2.405 – 2.483 GHz (<20 dBm) |
| Operating Temperature | -10°C to +40°C |
| Max Case Temperature (Tc) | +80°C |
| Radio Range | Up to 200 m (open area), 20 m (indoor) |
| Dimensions | 46 × 46 × 18 mm (without bracket) |
| Ingress Protection | IP20 |
- Optimized for LED lighting with stable, flicker-free dimming performance.
- Control lighting manually or remotely via the Tuya Smart app.
- Fast pairing and reliable connectivity without a gateway.
- Works with Amazon Alexa and Google Assistant for hands-free control.
- Small form factor fits easily behind wall switches or inside junction boxes.
